AVAILABLE TO ORDER STARTING AUGUST 3rd

New to Metcal? Click here

mx-cv-microfine-LP-desktop-banner

Tackle your biggest micro-soldering challenges with the systems relied on by the most demanding industries, Metcal MX & Connection Validation.

  • Dual-simultaneous ports for two users or a single user with dual applications
  • The MX- and CV-5200 super-charged power supply seamlessly tackles the challenges of high-mass components, multilayered boards, and lead-free solders.
  • Metcal's industry-standard systems, now with their smallest handpieces and tweezers to date
  • New MFTC & MFT soldering cartridge range - smallest diameters, geometries down to 0.1 mm
  • 600 Series (675°F / 357°C), 700 Series (775 °F / 413 °C), and 800 Series  (875 °F / 468 °C) cartridges are available in a wide range of geometries
  • Compatible with all MX and CV Series Soldering Systems
  • Hands-free cartridge insertion and removal​
  • Hands-free tweezer tip alignment
  • Ideal for working with micro-components down to 01005

SMARTHEAT® PROCESS CONTROLbrain-pcb-icon-1
The technology built into every Metcal SmartHeat® system means that soldering and rework are always performed at safe, controlled temperatures. Metcal users know that moderate fixed temperatures, where power is varied, provide the best assurance for a well-controlled soldering and rework process.

MX MicroFine System Configurations

MX-5261
 MX-5260
 MX-5262
MX-MicroFine Single Iron System MX-MicroFine Tweezer System MX-MicroFine Complete System
MX-5261 MX-5260 MX-5262
MX-PS5200 Power Supply
MicroFine Single-Iron Handpiece
Workstand		 MX-PS5200
MicroFine Tweezer Handpiece Workstand		 MX-PS5200 Power Supply
MicroFine Single-Iron Handpiece, MicroFine Tweezer Handpiece
2 Workstands

MX POWER SUPPLY | MICROFINE HANDPIECES | MICROFINE CARTRIDGES |
 COMPATIBLE MX HANDPIECES |  WORKSTANDS |  ACCESSORIES & UPGRADE KITS | TECHNICAL DOCUMENTS

CV MicroFine System Configurations

CV-5261-175
 CV-5260-175
 CV-5262-175
CV-MicroFine Single Iron System CV-MicroFine Tweezer System CV-MicroFine Complete System
CV-5261 CV-5260 CV-5262
CV-PS5200 Power Supply
MicroFine Single-Iron Handpiece
Workstand		 CV-PS5200
MicroFine Tweezer Handpiece Workstand		 CV-PS5200 Power Supply
MicroFine Single-Iron Handpiece, MicroFine Tweezer Handpiece
2 Workstands

CV POWER SUPPLY  | MICROFINE HANDPIECES | MICROFINE CARTRIDGES |
 COMPATIBLE CV HANDPIECES |  WORKSTANDS |  ACCESSORIES & UPGRADE KITS | TECHNICAL DOCUMENTS

THE MUSCLE: MX-5200 and CV-5200 Power Supplies

MX-PS5200

The MX-5200 Powerhouse Power Supply: The MX-5200 Soldering, Desoldering, and Rework Series boasts power and process control, with dual-simultaneous ports for two users or a single user with dual applications.

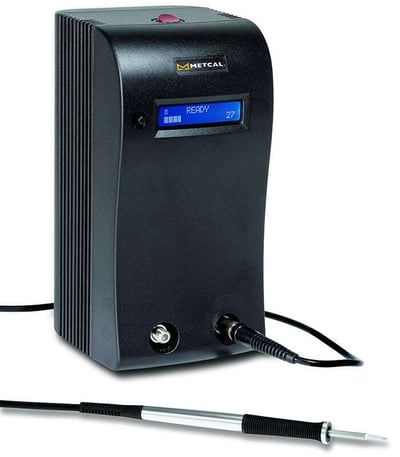

info.metcal.comhubfsMX-5210-FACING-RIGHT-700w

Shown with MX Advanced Handpiece MX-H1-AV

  • A built-in Net Power Meter displays a graphical and numerical representation of the power applied to the cartridge.

  • User Programmable Power Save Mode: the time to enter Power Save Mode is adjustable from 10 to 120 minutes.

  • Ground Fault Interrupt: AC ground monitor detects power line ground failures and immediately alerts the operator and shuts down the system.

  • Universal Power Supply: automatically senses the input line voltage and adjusts accordingly, which allows for worldwide operation without adaptors or a change in performance.

  • Full compatibility with existing and previous MX upgrade kits, tip-cartridges, handpieces, and accessories.

DATA SHEET | USER GUIDE

The CV-5200

The CV-5200 Power Supply has the power and performance of the classic MX-5200, and Metcal's breakthrough Connection Validation™ technology.

The intermetallic compound thickness is critical in the formation of a solder joint. Connection Validation™ (CV) evaluates the quality of the solder joint by calculating the intermetallic compound formation and provides closed-loop feedback to the operator. CV provides feedback to the operator via the LED light ring integrated into the handpiece. It takes the risk associated with the variables involved in the soldering activity and removes the success and failure determination of a good solder joint out of the hands of the operator.

CV complements the skill of the operator to judge the quality of a solder joint by introducing an objective method of evaluating solder joint quality. This systemic and objective approach provides repeatability and a measurable standard for the soldering process.

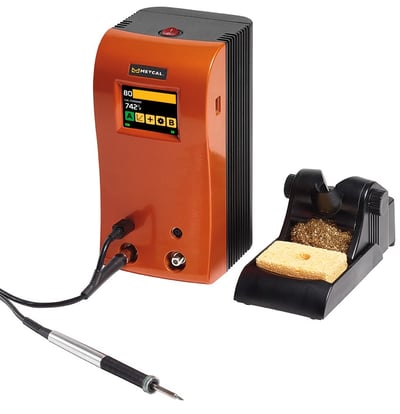

CV-5200-cropped

Shown with CV Advanced Handpiece CV-H1-AV

  • SmartHeat® Power-on-Demand Technology

  • Patented Connection Validation™ IMC Formation Technology
  • 2.8” color touchscreen with bold graphics
  • Communications Port for process traceability data and firmware upgrades
  • Precise tip temperature display
  • Integrated Net Power Meter and Power graph
  • Patented Chip-in-Cartridge technology
  • Closed loop bi-directional communication
  • Stores and records cartridge attributes
  • Provides traceability information
  • Protects power supply from non-conforming cartridges
  • Backwards compatible with MX Series power supplies
  • Password protection

DATA SHEET | USER GUIDE

cv-action-grab

CV provides feedback to the operator via the LED light ring integrated into the handpiece.

MicroFine Handpieces: Single Iron & Tweezer

For work under the microscope, operators need tools that are light, well-balanced, small, and powerful. Now they can leverage the power and repeatability of your existing MX soldering systems under the microscope like never before - with Metcal MicroFine.

MicroFine Handpiece Technical Drawing
MicroFine Tweezer Technical Drawing

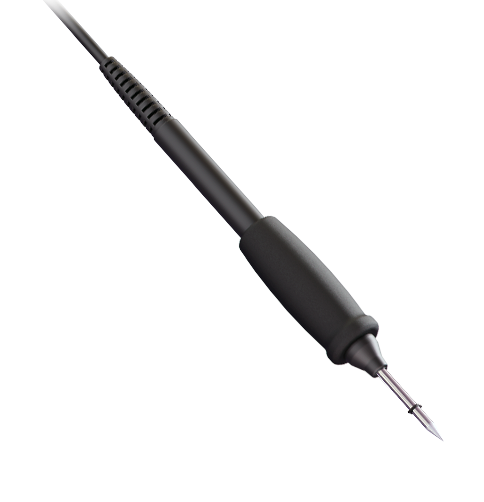

H-9-flipped

MicroFine Handpieces
MX-H9-MFH & CV-H9-MFH

  • Lightweight at < 12 gm
  • Well-balanced and ergonomic at only 115 mm long
  • Replaceable cushion grip for added comfort
  • Only 3.5 mm cable thickness, for easier handling
  • 2-meter cable for more versatility
  • Workstand enables hands-free tip insertion & removal, cartridge storage, and more
  • Many cartridge sizes, down to 0.1 mm
  • Available cartridge geometries include Chisel, Conical, Conical Reach, Conical Bent, Conical Bent Reach, Hoof, and Chisel Slot
H9-MFH  SPECIFICATIONS
Weight <12 gm
Length 115 mm
Cable Length 1.9 m
Cable Thickness 3.5 mm
Max. Temp. @ Grip 42 °C
Grip Replaceable

MX-H9 USER GUIDE

CV-H9 USER GUIDE

MX-H10-MFT & CV-H10-MFT Tweezer Handpiece

MicroFine Tweezers
MX-H10-MFT& CV-H10-MFT


  • Adjustable tip alignment
  • Horizontal gap: 1206 – 01005
  • Lightweight at < 30 gm
  • Well-balanced and ergonomic at only 98 mm long
  • Only 3.5 mm cable thickness, for easier handling
  • 2-meter cable for more versatility
  • Workstand enables hands-free tip insertion, removal, & alignment, cartridge storage, and more
  • Many cartridge sizes down to 0.1 mm
  • Available cartridge geometries include Chisel, Power Wedge/Blade, and Conical Bent
H10-MFT SPECIFICATIONS
Tip Alignment Adjustable
Horizontal Gap 1206 – 01005
Weight < 30 g
Dimensions (L/W/T) 98 x 27.5 x 18.5 mm
Cable Thickness 3.5 mm

MX-H10 USER GUIDE

CV-H10 USER GUIDE

MicroFine Cartridges

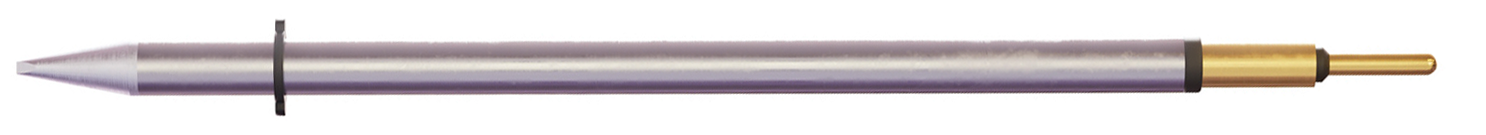

cart-rend-horiz

Metcal's MX Series Soldering Systems use SmartHeattm  fixed temperature technology to ensure fast and accurate heating during any application.brain-pcb-icon-1

Our cartridges are designed for use at a single, pre-determined temperature. The temperatures are chosen based on common, industrial manufacturing applications, and the properties of solder and its reaction to various temperatures. The temperature of the cartridge tip is maintained by SmartHeat's combination of inductive heating and the science of metalurgy, so that the temperature of each is fixed at the molecular level.

MicroFine Cartridges are available at three temperatures:

600 Series 675 °F 357 °C  For temperature-sensitive applications
700 Series 775 °F 413 °C  For most general applications
800 Series 875 °F 468 °C  For thermally demanding applications

MFTC MicroFine Cartridges for H9-MFH Handpieces

  Image Image Image Image
  CHISEL CHISEL CHISEL CHISEL
  0.2 mm x 5.0 mm 0.4 mm x 5.0 mm 0.6 mm x 5.0 mm 0.8 mm x 5.0 mm
600 Series MFTC-6CH5002 MFTC-6CH5004 MFTC-6CH5006 MFTC-6CH5008
700 Series MFTC-7CH5002 MFTC-7CH5004 MFTC-7CH5006 MFTC-7CH5008
800 Series MFTC-8CH5002 MFTC-8CH5004 MFTC-8CH5006 MFTC-8CH5008
  Image Image Image Image
  CHISEL CONICAL CONICAL REACH CONICAL
  1.2 mm x 5.0 mm 0.1 mm x 5.0 mm 0.1 mm x 5.0 mm 0.3 mm x 5.0 mm
600 Series MFTC-6CH5012 MFTC-6CN5001 MFTC-6CNR5001 MFTC-6CN5003
700 Series MFTC-7CH5012 MFTC-7CN5001 MFTC-7CNR5001 MFTC-7CNB4501
800 Series MFTC-8CH5012 MFTC-8CN5001 MFTC-8CNR5001 MFTC-8CNB4501
  Image Image Image Image
  CONICAL CONICAL BENT CONICAL BENT REACH CONICAL BENT
  0.5 mm x 5.0 mm 0.1 mm x 4.5 mm 0.1 mm x 4.5 mm 0.2 mm x 5.6 mm
600 Series MFTC-6CN5005 MFTC-6CNB4501 MFTC-6CNBR4501 MFTC-6CNB4503
700 Series MFTC-7CN5005 MFTC-7CNB4501
 MFTC-7CNBR4501 MFTC-6CNB4503
800 Series MFTC-8CN5005 MFTC-8CNB4501 MFTC-8CNBR4501  MFTC-6CNB4503
  Image Image Image Image
  CONICAL BENT CONICAL BENT HOOF CHISEL SLOT
  0.3 mm x 4.5 mm 0.5 mm x 4.5 mm 0.6 mm x 5.0 mm 0.7 mm x 5.0 mm x 1.0 mm
600 Series MFTC-6CNB4503 MFTC-6CNB4505 MFTC-6HF5006 MFTC-6CC5007
700 Series MFTC-7CNB4503 MFTC-7CNB4505 MFTC-7HF5006 MFTC-7CC5007
800 Series MFTC-8CNB4503 MFTC-8CNB4505 MFTC-8HF5006 MFTC-8CC5007
  Image Image Image Image Image Image Image Image
  CHISEL CHISEL CHISEL CHISEL CHISEL CONICAL CONICAL REACH CONICAL
  0.2 mm x 5.0 mm 0.4 mm x 5.0 mm 0.6 mm x 5.0 mm 0.8 mm x 5.0 mm 1.2 mm x 5.0 mm 0.1 mm x 5.0 mm 0.1 mm x 5.0 mm 0.3 mm x 5.0 mm
600 Series MFTC-6CH5002 MFTC-6CH5004 MFTC-6CH5006 MFTC-6CH5008 MFTC-6CH5012 MFTC-6CN5001 MFTC-6CNR5001 MFTC-6CN5003
700
Series		 MFTC-7CH5002 MFTC-7CH5004 MFTC-7CH5006 MFTC-7CH5008 MFTC-7CH5012 MFTC-7CN5001 MFTC-7CNR5001 MFTC-7CNB4501
800 Series MFTC-8CH5002 MFTC-8CH5004 MFTC-8CH5006 MFTC-8CH5008 MFTC-8CH5012 MFTC-8CN5001 MFTC-8CNR5001 MFTC-8CNB4501

  Image Image Image Image Image Image Image Image
  CONICAL CONICAL BENT CONICAL BENT REACH CONICAL BENT CONICAL BENT CONICAL BENT HOOF CHISEL SLOT
  0.5 mm x 5.0 mm 0.1 mm x 4.5 mm 0.1 mm x 4.5 mm 0.2 mm x 5.6 mm 0.3 mm x 4.5 mm 0.5 mm x 4.5 mm 0.6 mm x 5.0 mm 0.7 mm x 5.0 mm x 1.0 mm
600 Series MFTC-6CN5005 MFTC-6CNB4501 MFTC-6CNBR4501 MFTC-6CNB4503 MFTC-6CNB4503 MFTC-6CNB4505 MFTC-6HF5006 MFTC-6CC5007
700
Series		 MFTC-7CN5005 MFTC-7CNB4501
 MFTC-7CNBR4501 MFTC-6CNB4503 MFTC-7CNB4503 MFTC-7CNB4505 MFTC-7HF5006 MFTC-7CC5007
800 Series MFTC-8CN5005 MFTC-8CNB4501 MFTC-8CNBR4501  MFTC-6CNB4503  MFTC-8CNB4503 MFTC-8CNB4505 MFTC-8HF5006 MFTC-8CC5007
  Image Image Image Image Image Image Image Image
  CHISEL CHISEL CHISEL CHISEL CHISEL CONICAL CONICAL REACH CONICAL
  0.2 mm x 5.0 mm 0.4 mm x 5.0 mm 0.6 mm x 5.0 mm 0.8 mm x 5.0 mm 1.2 mm x 5.0 mm 0.1 mm x 5.0 mm 0.1 mm x 5.0 mm 0.3 mm x 5.0 mm
600 Series MFTC-6CH5002 MFTC-6CH5004 MFTC-6CH5006 MFTC-6CH5008 MFTC-6CH5012 MFTC-6CN5001 MFTC-6CNR5001 MFTC-6CN5003
700
Series		 MFTC-7CH5002 MFTC-7CH5004 MFTC-7CH5006 MFTC-7CH5008 MFTC-7CH5012 MFTC-7CN5001 MFTC-7CNR5001 MFTC-7CNB4501
800 Series MFTC-8CH5002 MFTC-8CH5004 MFTC-8CH5006 MFTC-8CH5008 MFTC-8CH5012 MFTC-8CN5001 MFTC-8CNR5001 MFTC-8CNB4501

  Image Image Image Image Image Image Image Image
  CONICAL CONICAL BENT CONICAL BENT REACH CONICAL BENT CONICAL BENT CONICAL BENT HOOF CHISEL SLOT
  0.5 mm x 5.0 mm 0.1 mm x 4.5 mm 0.1 mm x 4.5 mm 0.2 mm x 5.6 mm 0.3 mm x 4.5 mm 0.5 mm x 4.5 mm 0.6 mm x 5.0 mm 0.7 mm x 5.0 mm x 1.0 mm
600 Series MFTC-6CN5005 MFTC-6CNB4501 MFTC-6CNBR4501 MFTC-6CNB4503 MFTC-6CNB4503 MFTC-6CNB4505 MFTC-6HF5006 MFTC-6CC5007
700
Series		 MFTC-7CN5005 MFTC-7CNB4501
 MFTC-7CNBR4501 MFTC-6CNB4503 MFTC-7CNB4503 MFTC-7CNB4505 MFTC-7HF5006 MFTC-7CC5007
800 Series MFTC-8CN5005 MFTC-8CNB4501 MFTC-8CNBR4501  MFTC-6CNB4503  MFTC-8CNB4503 MFTC-8CNB4505 MFTC-8HF5006 MFTC-8CC5007

MFT MicroFine Cartridge Pairs for H10-MFT Tweezer Handpieces


  MFT-xCH9006 MFT-XCH9008 MFT-xPW5403 MFT-xCNB6204 MFT-XCNB6802-1
  CHISEL CHISEL POWER WEDGE CONICAL BENT CONICAL BENT
   0.6 mm x 9.0 mm   0.8 mm x 9.0 mm   0.3 mm x 5.4 mm
  0.4 mm x 6.2 mm   0.2 mm x 6.8 mm
600 Series MFT-6CH9006 MFT-6CH9008 MFT-6PW5403  MFT-6CNB6204
  MFT-6CNB6802
700 Series  MFT-7CH9006  MFT-7CH9008  MFT-7PW5403
  MFT-7CNB6204
  MFT-7CNB6204
800 Series MFT-8CH9006 MFT-8CH9008 MFT-8PW5403  MFT-8CNB6204   MFT-8CNB6204

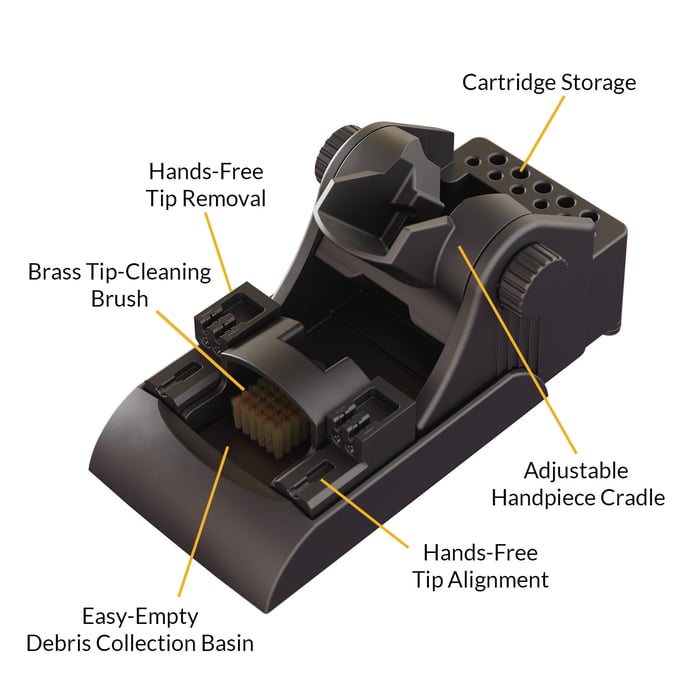

MicroFine Workstands

With the new MicroFine systems come updated workstands with useful features like:

  • Hands-free cartridge removal
  • Hands-free tip alignment
  • Replaceable brass tip-cleaning brush
  • Easy-empty debris collection basin
  • Soldering cartridge storage
  • Adjustable cradle
MFT-WS10_1

MX-MicroFine Add-Ons & Replacement Parts

CV-UK9 CV-UK9_1  CV-UK10
CV-H10-MFT		 CV-UK9_2
 CV-UK10_2
 AC-BBP - Copy
 AC-MFCH


MicroFine Handpiece & Workstand Kit MicroFine Handpiece  MicroFine Tweezer & Workstand Kit MicroFine Tweezer
 MicroFine Handpiece Workstand MicroFine Tweezer Workstand Replacement Brass Brush for MicroFine Workstands Replacement Cord Holder for MicroFine Workstands
MX-UK9 MX-H9-MFH MX-UK10  MX-H10-MFT MFH-WS9 MFT-WS10 AC-BBP AC-MFCH

The MX-5260 and CV-5260 Series are not just MicroFine.
They are additions to the Metcal modular industrial ecosystem

The Metcal MX and CV Series feature specialty handpieces for soldering, desoldering, fine work, high thermal demand, in single irons and tweezers.

MX and CV Handpieces can be used in either of the two ports, in any combination

Find details on these handpieces and many others at Metcal.com

MX MicroFine Technical Documents
MX-5200 Series User Guide
MX-5200 Data Sheet
MX-5200 Quick Start Guide
MX MF Handpiece User Guide
MX MF Tweezer User Guide
MicroFine Workstand User Guide - H9 Handpiece
MicroFine Workstand User Guide - H10 Tweezer
MicroFine Cartridge Guide
Metcal Complete Cartridge Guide

CV MicroFine Technical Documents
CV-5200 Series User Guide
CV-5200 Data Sheet
CV-5200 Quick Start Guide
CV MF Handpiece User Guide
CV MF Tweezer User Guide
MicroFine Workstand User Guide - H9 Handpiece
MicroFine Workstand User Guide - H10 Tweezer
MicroFine Cartridge Guide
Metcal Complete Cartridge Guide
In the Box

What's in the box?

MX-5261
 MX-5260
 MX-5262
MX MicroFine Single Iron System MX-MicroFine Tweezer System MX-MicroFine Complete System
MX-5261 MX-5260 MX-5262

(1) MX-PS5200 Power Supply
(1) MX-H9-MFH MicroFine Single-Iron Handpiece
(1) MFH-WS9 Workstand
(1) AC-MFCH Cord Holder
(1) Cartridge Pad
(1) MX-PC1 Power Cable
(1) MX-5200 Series User Guide
(1) MX-H9-MFH MicroFine Single-Iron User Guide

 (1) MX-PS5200 Power Supply
(1) MX-H10-MFT MicroFine Tweezer Handpiece
(1) MFT-WS10 Workstand
(1) AC-MFCH Cord Holder
(1) Cartridge Pad
(1) MX-PC1 Power Cable
(1) MX-5200 Series User Guide
(1) MX-H10-MFT MicroFine Tweezer User Guide

(1) MX-PS5200 Power Supply
(1) MX-H9-MFH MicroFine Single-Iron Handpiece
(1) MX-H10-MFT MicroFine Tweezer Handpiece
(1) MFH-WS9 Workstand
(1) MFT-WS10 Workstand
(2) AC-MFCH Cord Holder
(2) Cartridge Pad
(1) MX-PC1 Power Cable
(1) MX-5200 Series User Guide
(1) MX-H9-MFH MicroFine Single-Iron User Guide
(1) MX-H10-MFT MicroFine Tweezer User Guide
CV-5261-175
 CV-5260-175
 CV-5262-175
CV MicroFine Single Iron System CV MicroFine Tweezer System CV MicroFine Complete System
CV-5261 CV-5260 CV-5262

(1) CV-PS5200 Power Supply
(1) CV-H9-MFH MicroFine Single-Iron Handpiece
(1) MFH-WS9 Workstand
(1) AC-MFCH Cord Holder
(1) Cartridge Pad
(1) MX-PC1 Power Cable
(1) MX-5200 Series User Guide
(1) CV-H9-MFH MicroFine Single-Iron User Guide

 (1) CV-PS5200 Power Supply
(1) CV-H10-MFT MicroFine Tweezer Handpiece
(1) MFT-WS10 Workstand
(1) AC-MFCH Cord Holder
(1) Cartridge Pad
(1) MX-PC1 Power Cable
(1) CV-5200 Series User Guide
(1) CV-H10-MFT MicroFine Tweezer User Guide

(1) CV-PS5200 Power Supply
(1) CV-H9-MFH MicroFine Single-Iron Handpiece
(1) CV-H10-MFT MicroFine Tweezer Handpiece
(1) MFH-WS9 Workstand
(1) MFT-WS10 Workstand
(2) AC-MFCH Cord Holder
(2) Cartridge Pad
(1) MX-PC1 Power Cable
(1) MX-5200 Series User Guide
(1) CV-H9-MFH MicroFine Single-Iron User Guide
(1) CV-H10-MFT MicroFine Tweezer User Guide

Learn more about MicroFine soldering
Contact Metcal to set up a demo

Medium Metcal Logo Horizontal Yellow and White_RGB
LinkedinFacebook Twitter Youtube

Corporate Headquarters
(United States)

OK International
10800 Valley View Street
Cypress, CA 90630
Tel: 1-714-230-2398
Fax: 1-714-230-2393
Email: NA-CustCare@okinternational.com



United Kingdom

OK International
Eagle Close, Chandlers Ford
Hampshire, S053 4NF
U.K.
Tel: +44 (0) 23-8048-9100
Email: europe@okinternational.com



China Corporate Office

OK International
4th floor East, The Electronic Building
Yanxiang Industrial Zone
High Tech Road, Guangming New District
Shenzhen, P.R.C
Tel: +86-755-2327 6366
Fax: +86-755-2329 5492
Email: china@okinternational.com



Copyright 2024, Metcal | OK International, a Dover Company
