The Next Generation of Fume Extractors is Here

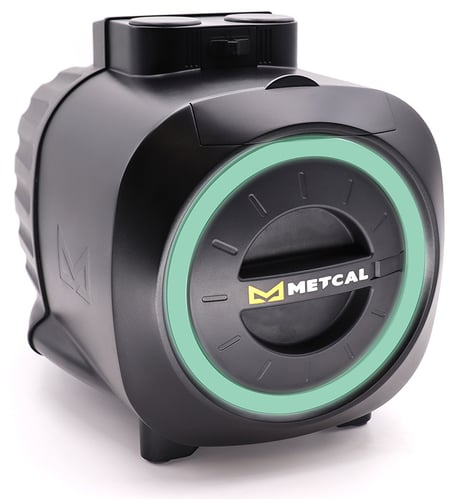

Metcal BVX-250: The compact, high-performance 2-station portable fume extractor
BVX-250 KEY FEATURES
- Easy 30-Second Filter Changes
- LED Status Ring
- 2x the Suction of Previous Models
- 99.97% Efficiency HEPA 13 Filter
- Optional Deep Bed Gas Filter (sold separately)
- Quiet Operation
- Three Power Levels
- 360-degree Rotating/Removable Air Diverter
- Communicates with Metcal CV & GT Series Soldering Systems
- New Circular & Rectangular Nozzles with Nozzle Filters
- Compatible with previous BVX & Omniflex Arms and Hoses
- Small Footprint for Under or On the Benchtop
- Remote Switch Included
POWERFUL SUCTION IN A SMALL FOOTPRINT
Remove solder fumes, smoke, dust, and vapors, and reduce odors from limited adhesives and solvents with MORE SUCTION POWER than competitive fume extractors.
30-SECOND FILTER CHANGES
There is no need to remove hoses or dismantle your fume extractor to change filters. BVX-250 Series extractors are designed for FAST AND EASY FILTER CHANGES to keep your operation moving at full capacity.
The pre-filter is housed in a simple-to-open tray on the top of the unit for easy access.
The main filter is removed with a simple twist.
MONITOR UNIT STATUS AT A GLANCE
The state of the BVX-250 unit is indicated on the large, easy-to-see LED STATUS RING. Immediately know if the unit is on, idle, or requires a filter change.
GREEN: System is on and extracting smoke & fumes
BLUE: System is on, but in idle mode and not extracting
AMBER: The pre-filter needs to be changed or is not installed correctly
RED: The main filter needs to be changed or is not installed correctly
REMOVABLE 360-DEGREE ROTATING AIR DIVERTER
Filtered air exhausts through the REMOVABLE DIVERTER in the rear of the unit.
The diverter can be rotated 360 degrees to DIRECT AIRFLOW IN ANY DIRECTION, maximizing operator comfort
The diverter is removable so you can INSTALL BVX-250 INTO VENTILATION SYSTEMS via standard 3” ducting
BVX-250 MAIN FILTER OPTIONS FOR MAXIMUM FLEXIBILITY
HEPA 13/Gas Filter
Deep Bed Gas Filter
An optional Deep Bed Gas Filter is also available (sold separately):
- Iodine value of activated carbon: 800 mg/g
- Outer circle initial effect filter screen: G1 efficiency
- Inner circle initial effect filter cotton: G2 efficiency
COMMUNICATES WITH METCAL CV & GT SOLDERING SYSTEMS
The BVX-250 can COMMUNICATE WITH CV and GT SOLDERING SYSTEMS via USB connections. The BVX-250:
- Goes into power-saving Idle Mode when the soldering system goes into sleep/idle mode
- Sends filter-status warnings to the soldering system when the Main or Pre-Filter needs attention
QUIET OPERATION WITH THREE POWER SETTINGS
50 dBA of noise at the medium power setting.
High speed - When suction performance is the top priority, maximum smoke removal and fume extraction.
Medium speed – For applications where quieter equipment is needed, paired with high suction performance.
Low speed - For use in quiet rooms or small areas.
NEW RECTANGULAR AND CIRCULAR NOZZLES
Customize the system even further with NEW RECTANGULAR AND CIRCULAR NOZZLES.
The new nozzles come with Nozzle Filters. Inserted into the new nozzles, Nozzle Filters help protect your unit against unwanted objects entering and damaging the system.
AVAILABLE BVX-250 SYSTEMS TO CHOOSE FROM
Change the Pre-Filter in 30 Seconds
Change the Main Filter in 30 Seconds
LED Status Ring
|Max. airflow, free blowing||297 m3/h (175 cfm)|
|Flow rate||2 x 75 m3/h (45 cfm)|
|Static pressure||1743 Pa (7” WC)|
|Noise level (approx.)||50 dBA (at medium setting)|
|Voltage||100 – 240 VAC, 1 phase|
|Safety compliance||UL & CSA, UKCA, KC, PSE, NOM, CE (ISO-14644), TUV|
|Dimensions W/D/H mm||268 x 400 x 320|
|Dimensions W/D/H inches||10.5” x 16” x 13”|
|Weight (approx.)||12 lbs. / 5.5 kg|
SYSTEMS, REPLACEMENT FILTERS, NOZZLES, & ACCESSORIES
|BVX-250||BVX-250 Unit, (1) Pre-Filter, (1) HEPA/Gas Filter, (1) RPS-1 Remote Power Switch (arms sold separately)|
|BVX-250-KIT||BVX-250 Unit, (1) Pre-Filter, (1) HEPA/Gas Filter, (1) RPS-1 Remote Power Switch, (1) BVX-250-ARML 5’ Arm, (1) BVX-NOZR Rectangular Nozzle, (1) BVX-NOZC Circular Nozzle, (2) FN-BVX Nozzle Filters|
|FP-BVX250||Pre-Filter (Pack of 5)|
|FM-BVX250||Main Filter, HEPA 99.97% / Carbon|
|FG-BVX250||Deep Bed Gas Filter (Carbon)|
|FN-BVX||Replacement Nozzle Filter for BVX-NOZR and BVX-NOZC Nozzles (Pack of 5)|
|BVX-NOZR||Replacement Rectangular Nozzle for BVX Systems, ESD-Safe|
|BVX-NOZC||Replacement Round- Circular Nozzle for BVX Systems, ESD-Safe|
|BVX-NOZ1||Replacement Hoof Nozzle for BVX Systems, ESD-Safe|
|OPTIONAL ARM KITS AND ACCESSORIES|
|BVX-ARM-K1||2.5’ Flexible Arm, 6’ Hose, Table Bracket & C-Clamps, ESD-Safe|
|BVX-ARM||2.5’ Flexible Arm, 2" Ø, ESD-Safe|
|BVX-ARML||5’ Flexible Arm, 2" Ø, ESD-Safe|
|BVX-CH01||6’ BVX Connection Hose, 2" Ø, ESD-Safe|
|BVX-CH02||12’ BVX Connection Hose, 2" Ø, ESD-Safe|
|AC-BVX250-DUCT||Adapter for Direct Ducting BVX-250 into Ventilation Systems|
|AC-BVX250-OMNI||BVX-250 Adaptor for Metcal Omniflex Arms|
|RPS-1||Replacement Remote Power Switch for BVX-200 Series Systems|
|BVX-TB01||BVX Table Bracket and (2) C-Clamps|
|EA1122||Omniflex Arm, ESD-Safe, with Nozzle, 150 x 88 mm|
|EA1124||Omniflex Arm, ESD-Safe, with Tapered Nozzle|
|EA1126||Omniflex Arm, ESD-Safe, with Large Hood 350 x 212 mm (14" x 8.5")|
|Q-AD426530||Omniflex Nozzle - Rectangular|
|Q-AD426550||Omniflex Nozzle - Tapered|
|Q-AD426560||Omniflex Nozzle - Large Hood|
|AC1101||Damper for Omniflex Arms|
|AC1102||Omniflex Arm Extensions|
LEARN MORE ABOUT BVX-250 - SET UP A DEMO!
