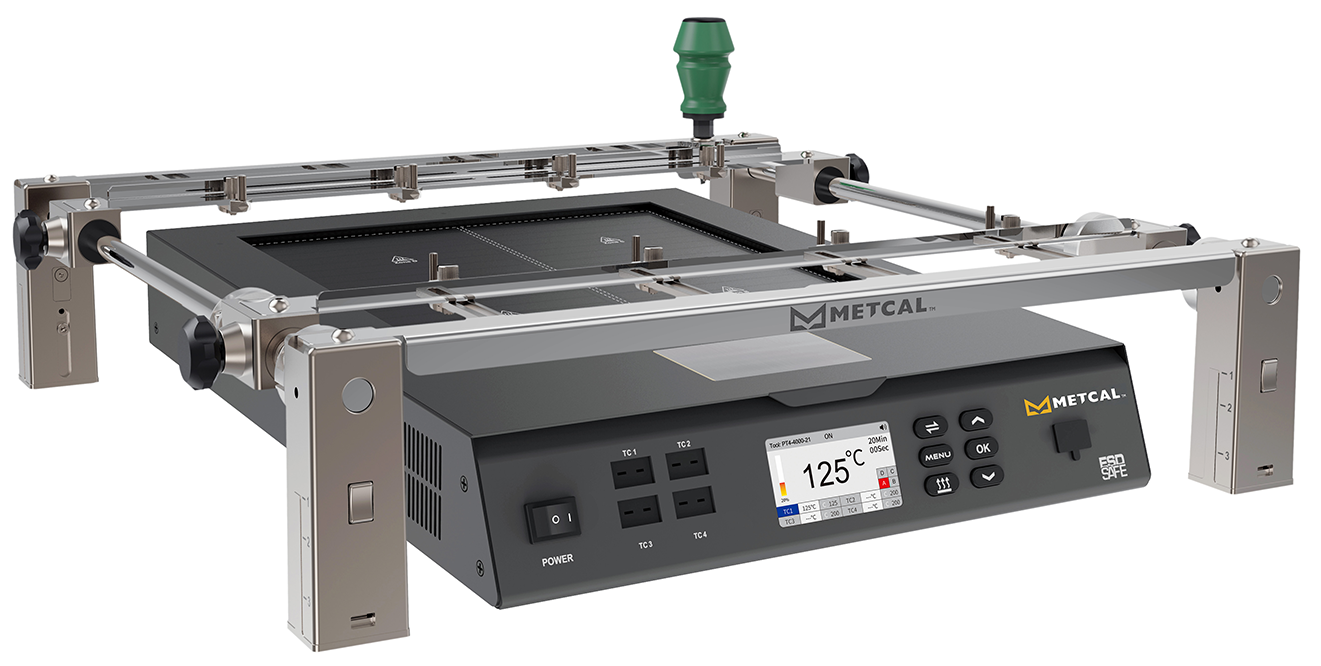

Board Holder with Preheater-LP

Metcal BH-4000 & BH-8000 Board Holders

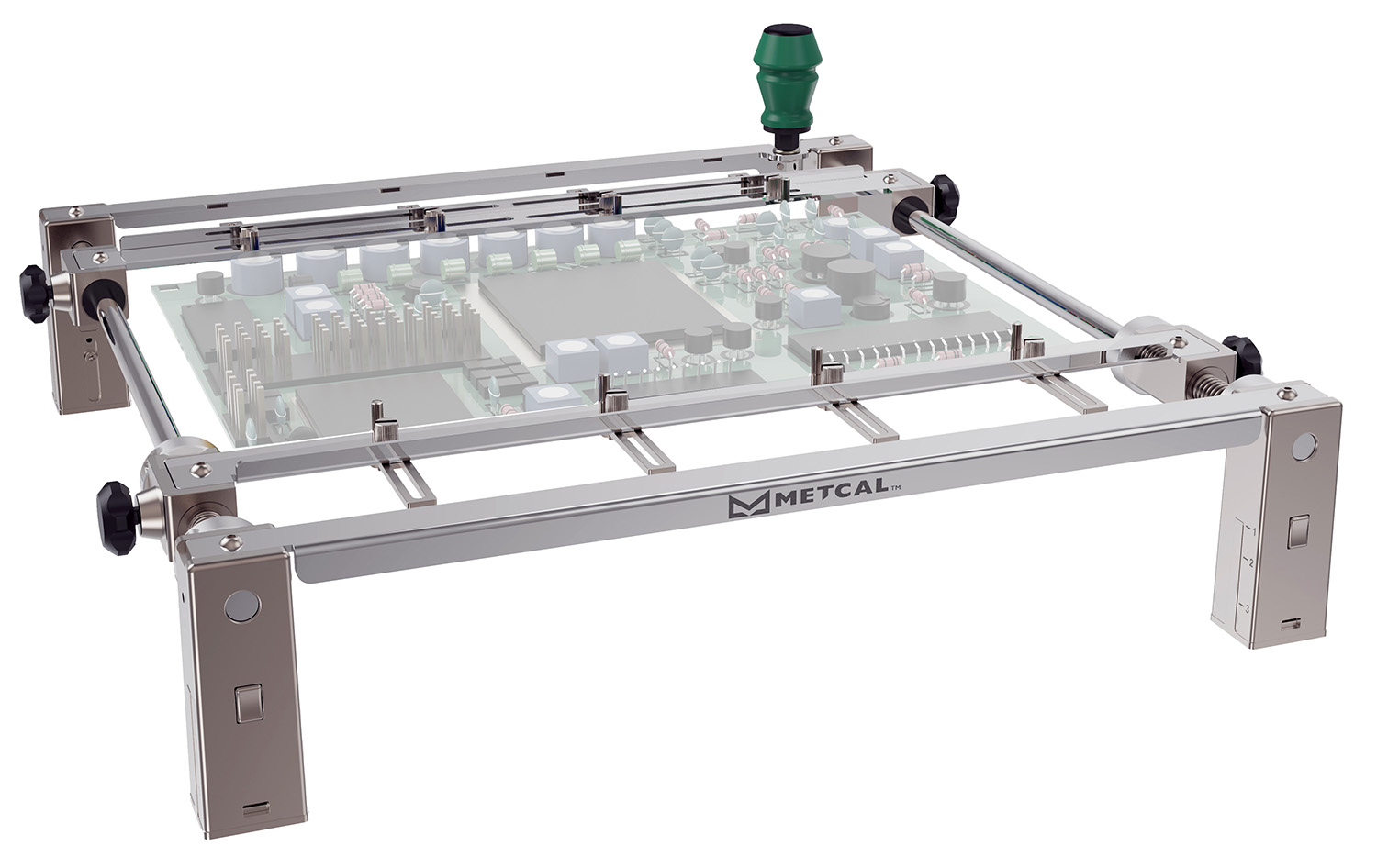

BH-4000 Board Holder
  • Adjustable in all directions
  • Three levels of adjustable height
  • Max. PCB size:
    • BH-4000: 10" x 10" / 258 x 258 mm
    • BH-8000: 15" x 16.5" / 378 x 418 mm
  BH-4000 BH-8000
Dimensions 16.65" x 16" x 4"
423 x 406 x 102.5 mm
23" x 20.7" x 4"
584 x 526 x 102.5 mm
Maximum PCB Size 10" x 10"
258 x 258 mm
15" x 16.5"
378 x 418 mm
Adjustable Parts Adjustable in all directions (front, back, left, right)
Height Adjustment Three levels of adjustable height
Clamping Spring Force 3.3 lbs
1.5 kg
Locking Mechanism Supported
PCB Thickness Range 0.02" ~ 0.12"
0.5~3 mm
Accessories (1) Screwdriver, (1) Grounding Wire
Compatible Preheater PT4-4000 or similar PT4-8000 or similar

Part Numbers

PART NUMBER DESCRIPTION
BH-4000 Board Holder, max. PCB size 10" x 10" / 258 x 258 mm, adjustable in all directions, ESD Safe
BH-8000  Board Holder, max. PCB size 15" x 16.5" / 378 x 418 mm, adjustable in all directions, ESD Safe
